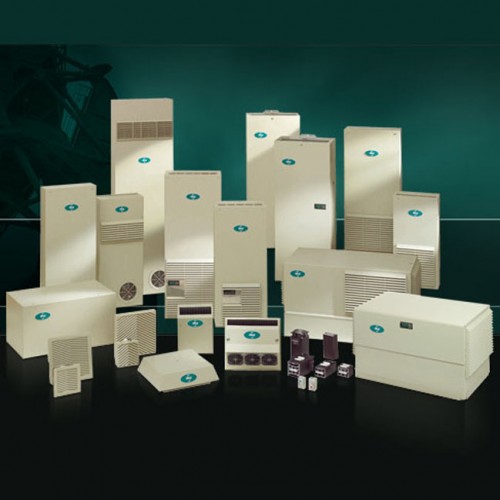

AC Panel MKS

AC Panel MKS

The modern world of electronics uses increasingly more sophisticated and powerful components and circuits that are crammed into very small spaces.

Heat, dust, humidity, vapours and fumes are harmful to electronic parts and can cause serious economic damage, such as the stoppage of entire production lines. Protecting artificial intelligence and creating optimum and safe environment conditions is more than just a necessity, it is an important company investment.

The various MKS series of products are suitable for a range of uses: air conditioners, heat exchangers, fans, thermostats and heaters.
A broad range of top-quality models and accessories produced by the unique skills of Italy’ s number one manufacturer in the industry.

Series 10

The innovating Series 10 " Extra Slim" cooling units range represents the solution to the request for air-conditioner integrated in the enclosure door or side.
Cooling capacity up to 2700W in only 160mm of depth.
The whole range is conceived to work without maintenance, thus without filters ( except in special environments) .

Main features:
- Electronic thermostat for the whole range ( without display) .
- Time-switch for compressor start.
- Alarm signal for high temperature.
- " Zero-Cross Switching" function.
- Open door checking device.
- Three mounting versions in only one identical
cut-out: External( O) , Semi-encasing( S) , and Total internal( I) .
- Version for mouting totally External( E) .
- No condensate on internal cabinet.
- Easy and fast maintenance.
- Working temperature up to 55? C internal/ external cabinet.
- Suitable for outdoor use.
- Rapid connections.
- Bi-Frequency 50/ 60Hz.
- " Aluzink" structure. Rust free for more than 600 hours in saline fog.
Personalizations available on demand:
- Kit Display.
- Filter kit for heavy-duty environments.
- Integrated condensate evaporator.
- Feeding voltage different from standard.
- Special painting.
- Stainless steel Cover

Series 20

The cooling units Series 20 have been designed for heavy-duty use, they are divided into two categories:
Series 20 E ( Europe) to be used with temperatures lower than 50? C outside cabinet and 45? C inside;
Series 20 H ( High) with temperatures external/ internal up to 55? C.

Features
Thermostat-controlled temperature.
High-capacity radial-flow fans on ball bearings.
Air courses and distance between openings prevent the occurrence of the thermal ? short-circuits? .
Easy and fast maintenance.

Series 40

The Series 40 is the natural evolution of products belonging to Series 20.
The result obtained derives from the research of satisfying the more and more specific market requests.
This range is conceived for standard use without maintenance, without filters, and without any possibility of condensation forming inside the cabinet.
Like Series 20, Series 40 is divided into two categories:
E ( Europe) to be used with temperatures lower than 50? C outside cabinet and 45? C inside cabinet;
H ( High) with temperatures external/ internal up to 55? C.

Features
Fast mounting.
Designed to have no condensate inside the cabinet.
Lifting handles
Easy and fast maintenance.

Customisations
IP54 insulation on external side.
Filter kit for heavy-duty environments.
Integrated condensation evaporator.
Feeding voltage different from standard.
Special painting.
Stainless steel cover.

Cooling Unit
Thermoelectric Unit

The units of the MCE Series operate according to thermoelectric thecnology principles, and more specifically Peltier cells.
Thermoelectric technology is ideal for cooling and heating control panels.
